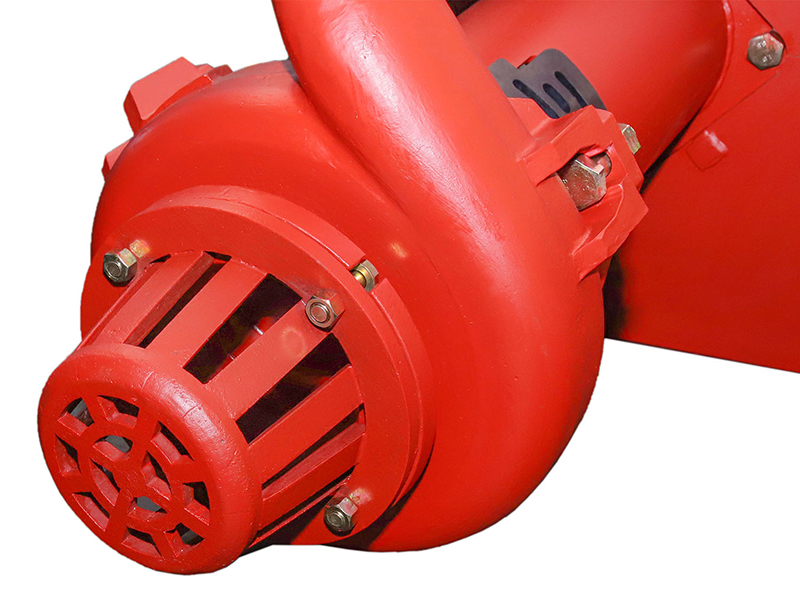

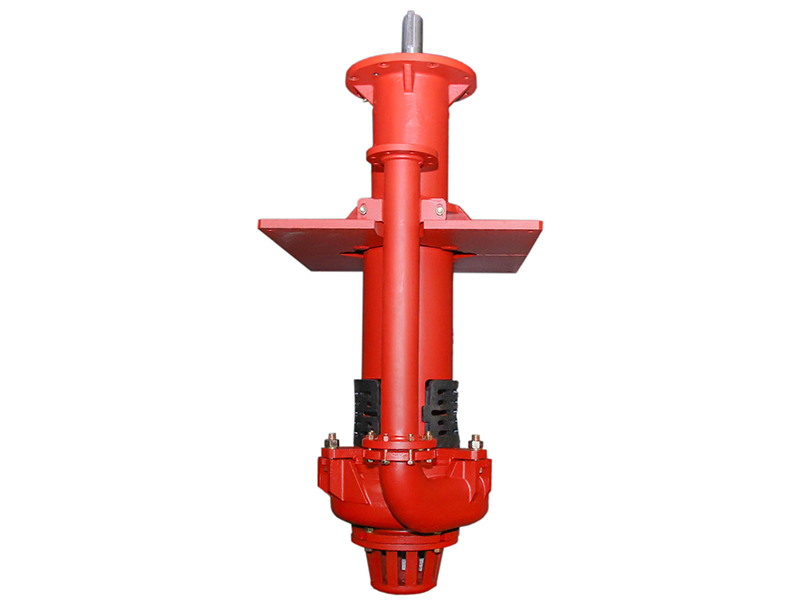

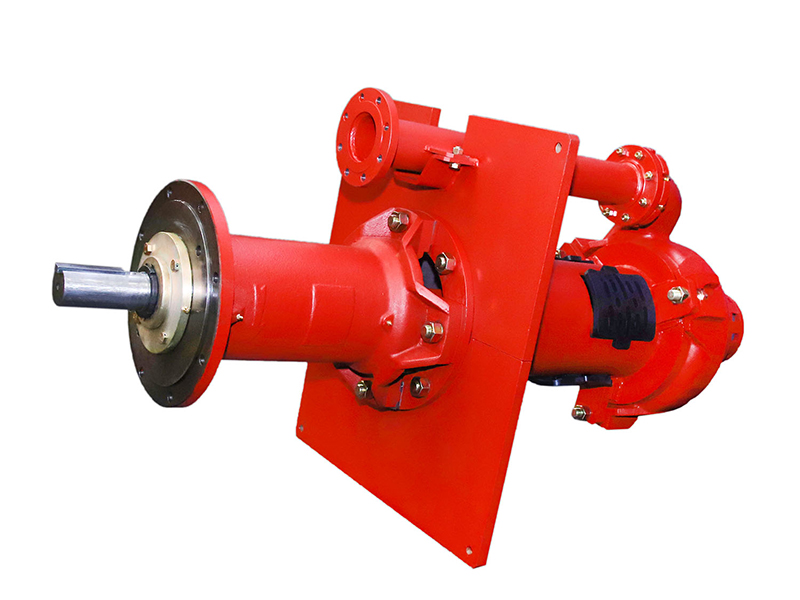

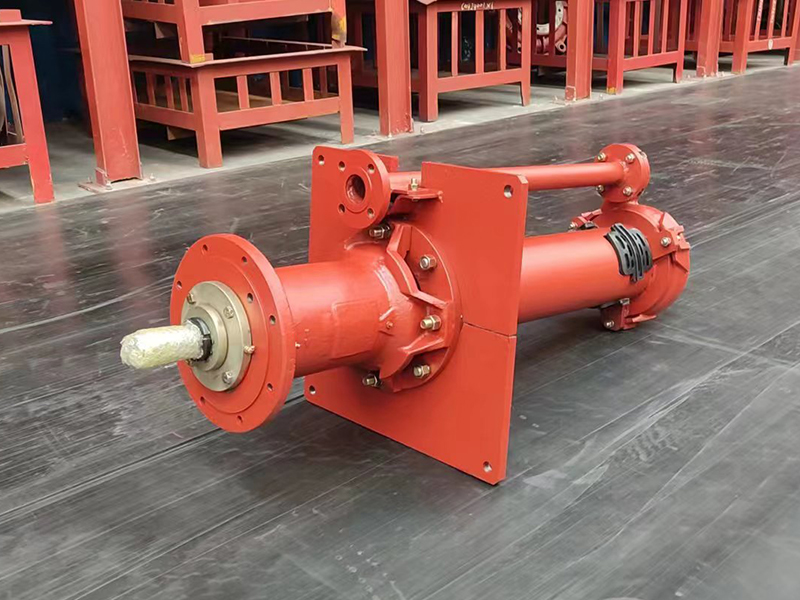

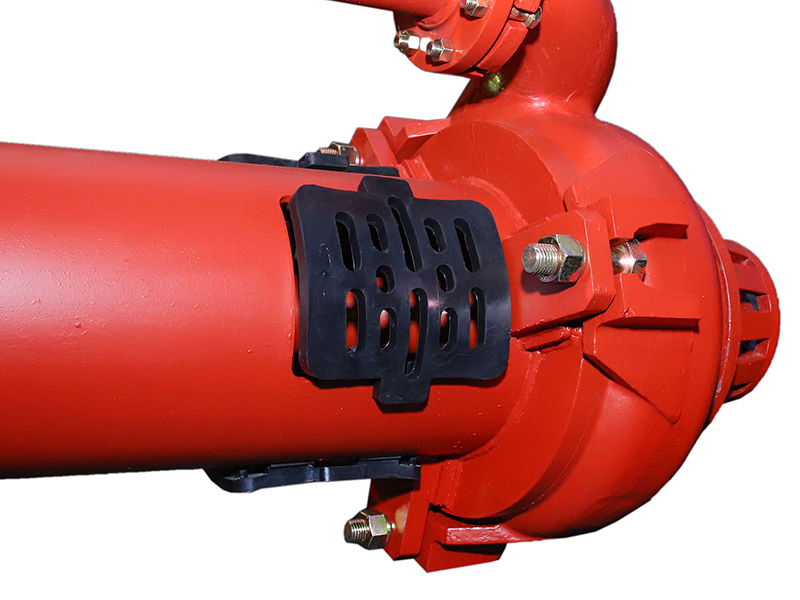

Vertical Centrifugal Slurry Pump
-
Vertical centrifugal slurry pump is immersed in the liquid and is used for conveying abrasive, coarse particle, and high-concentration slurry. It does not require any shaft seal or sealing water and can operate normally even under conditions of insufficient inlet pressure.
The components are available in two types: wear-resistant metal or rubber lining. The rubber lining is suitable for conveying highly corrosive slurry. Therefore, the submerged slurry pump has the advantages of long service life for vulnerable parts, large particle size for flow passage, convenient maintenance, low operating costs, and high reliability.
HC-V series slurry pump is suitable for coal preparation, chemical processing, wastewater treatment, sand and gravel applications, and is particularly suitable for slurry transportation in flotation, concentration, flue gas desulfurization, and process feed circuits.

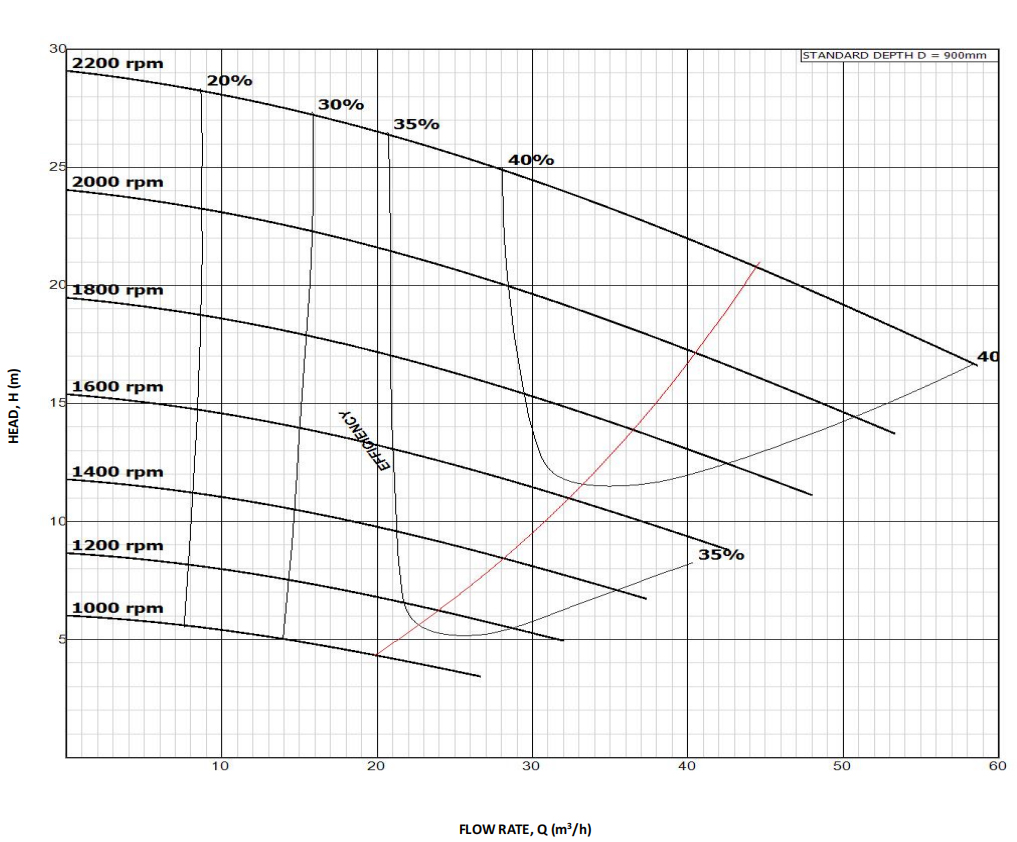

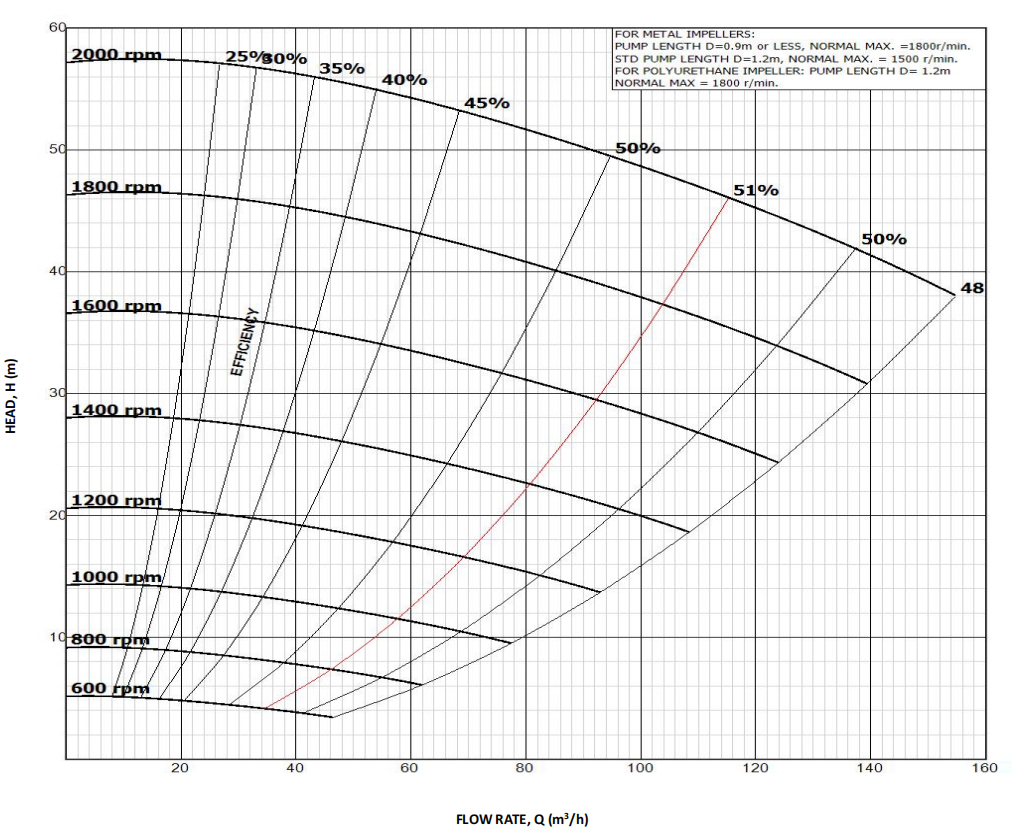

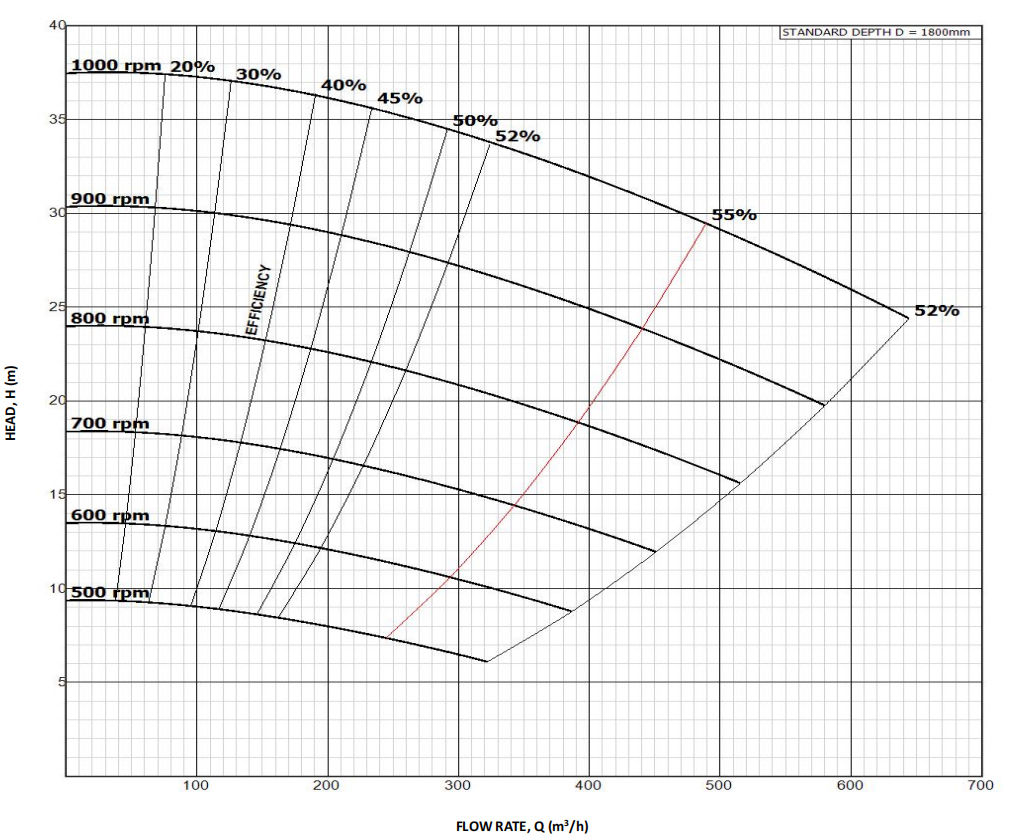

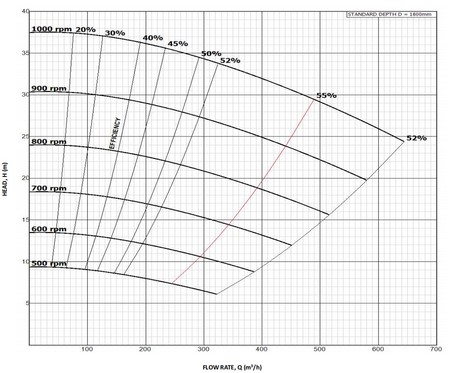

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | Impeller Diameter | Motor Power Rang |

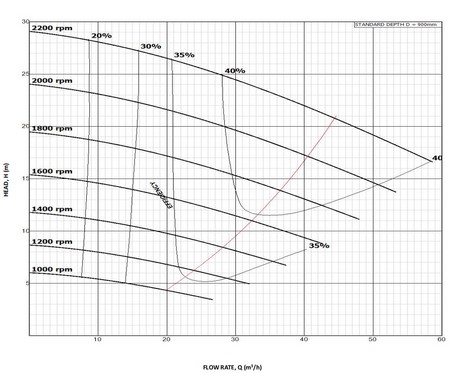

| 15 kW | 7.2-39.6 m³/h | 4.3-27.4 m | 1000-2200 r/min | 40% | 188 mm | 4-11 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | Impeller Diameter | Motor Power Rang |
| 30 kW | 19-102.6 m³/h | 5-30.8 m | 700-1500 r/min | 50% | 280 mm | 2.2-22 kW |

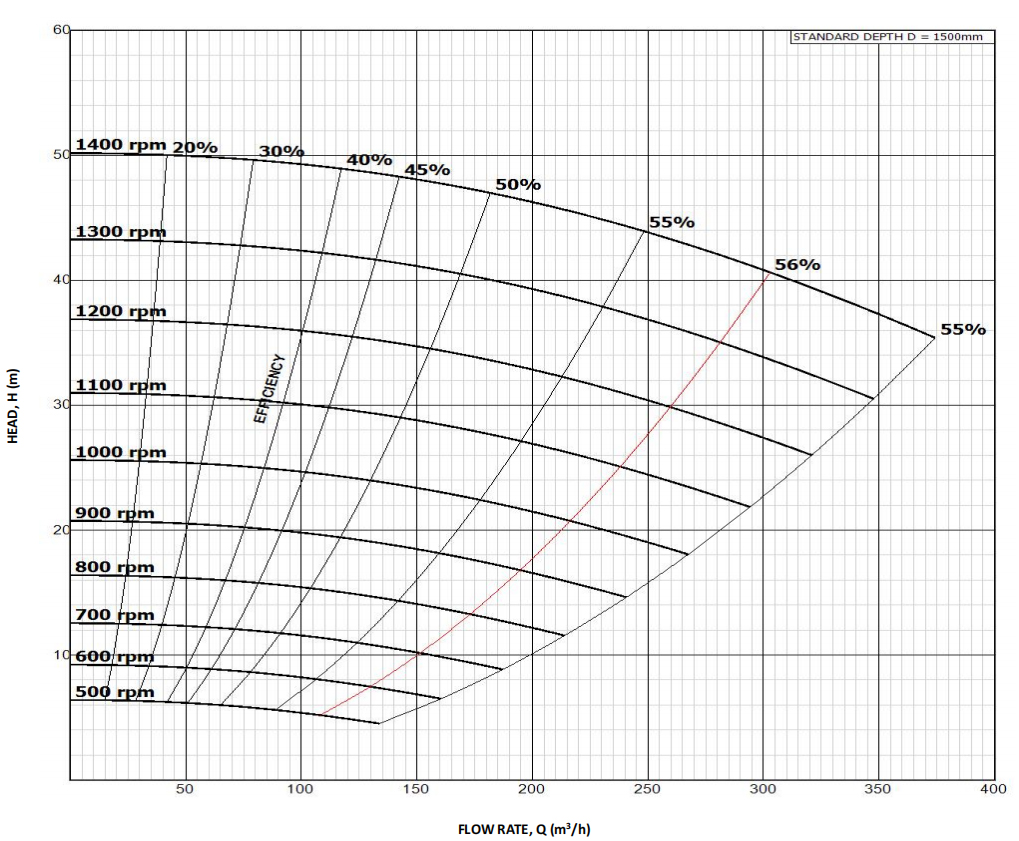

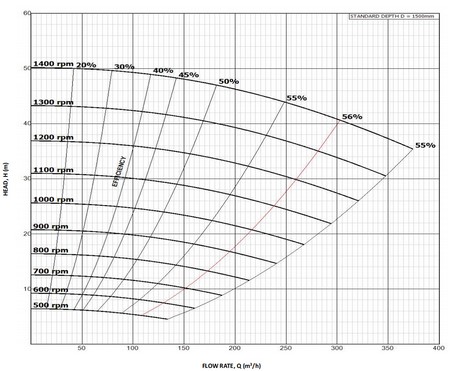

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | Impeller Diameter | Motor Power Rang |
| 75 kW | 41.5-259.2 m³/h | 5.1-36 m | 500-1200 r/min | 56% | 370 mm | 3-45 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | Impeller Diameter | Motor Power Rang |
| 110 kW | 115.2-576 m³/h | 6.7-35.7 m | 500-1000 r/min | 52% | 450 mm | 11-90 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | Impeller Diameter | Motor Power Rang |

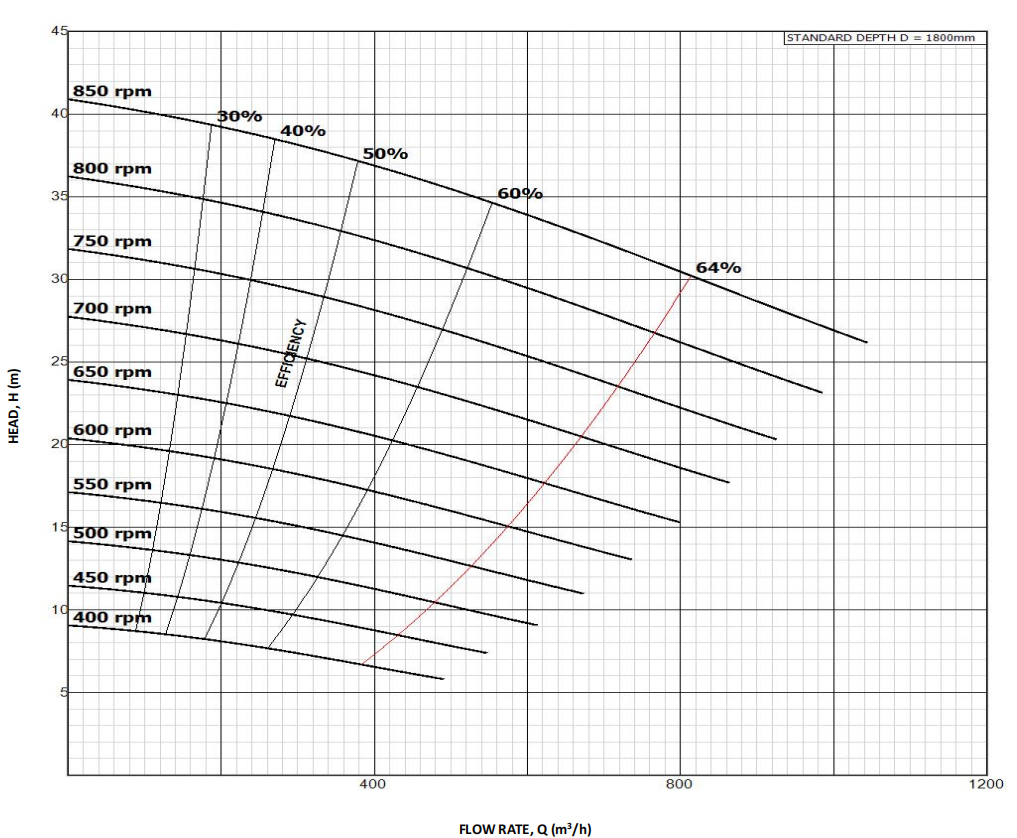

| 110 kW | 180-734.4 m³/h | 6-28.2 m | 400-740 r/min | 64% | 520 mm | 11-45 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | Impeller Diameter | Motor Power Rang |

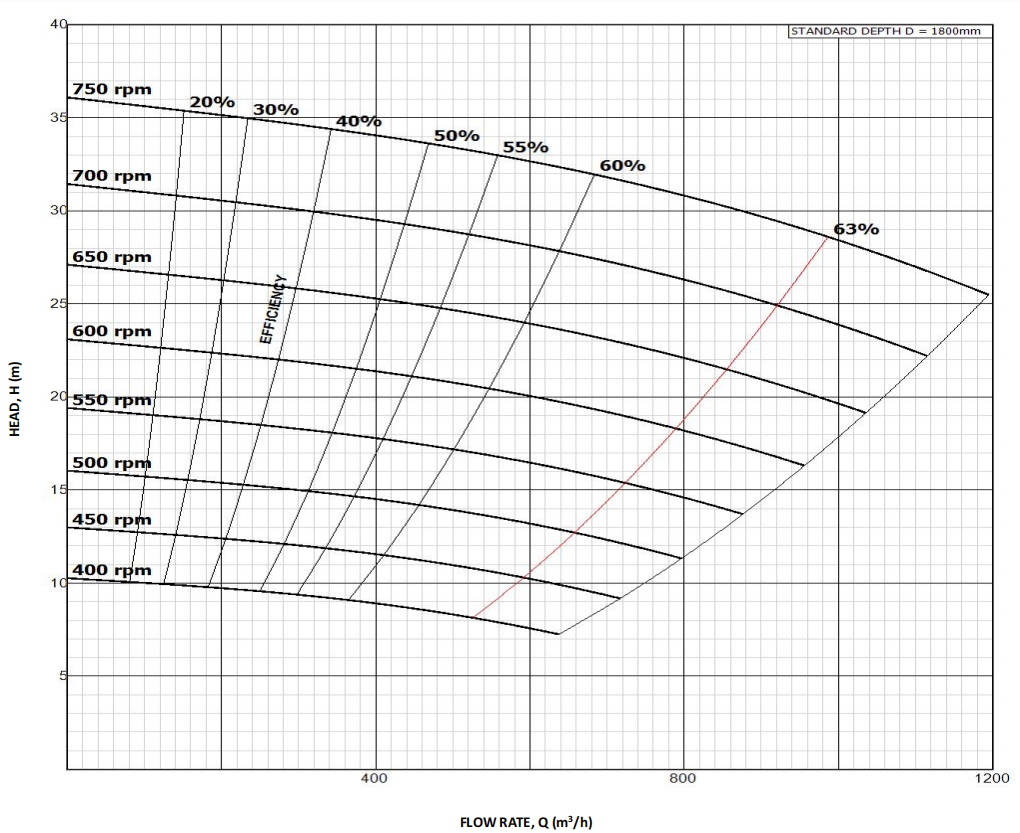

| 200 kW | 261-1089 m³/h | 7.5-33.5 m | 400-750 r/min | 60% | 575 mm | - |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | Impeller Diameter | Motor Power Rang |
| 200 kW | 288-1267 m³/h | 6.5-33 m | 350-700 r/min | 50% | 610 mm | - |
The HC-V series vertical centrifugal pump stands out in several aspects, making it an ideal choice for optimizing fluid handling efficiency.
Contact one of our expert customer service representatives to learn more about our products and services.

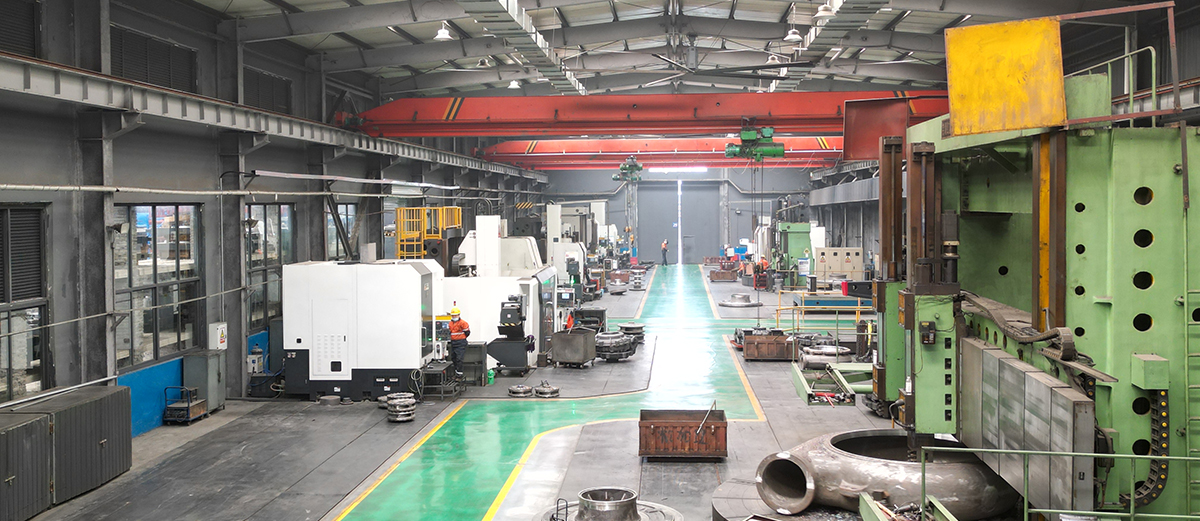

Shijiazhuang Hongchang Pump Co., Ltd. (Hongchang Pump) is a professional manufacturer that specializes in the design, manufacturing, and sales of slurry pumps and high-chrome wear-resistant pump parts. We are dedicated to providing customers with high-quality products and services.
