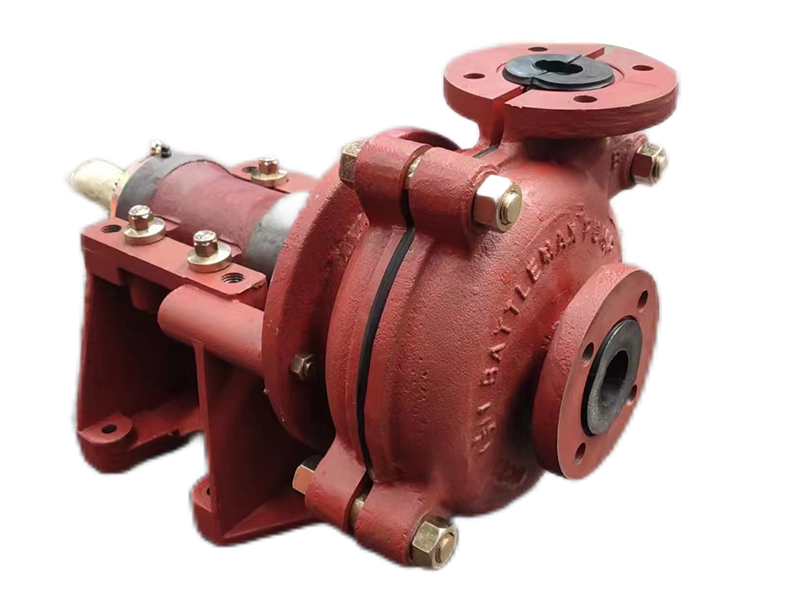

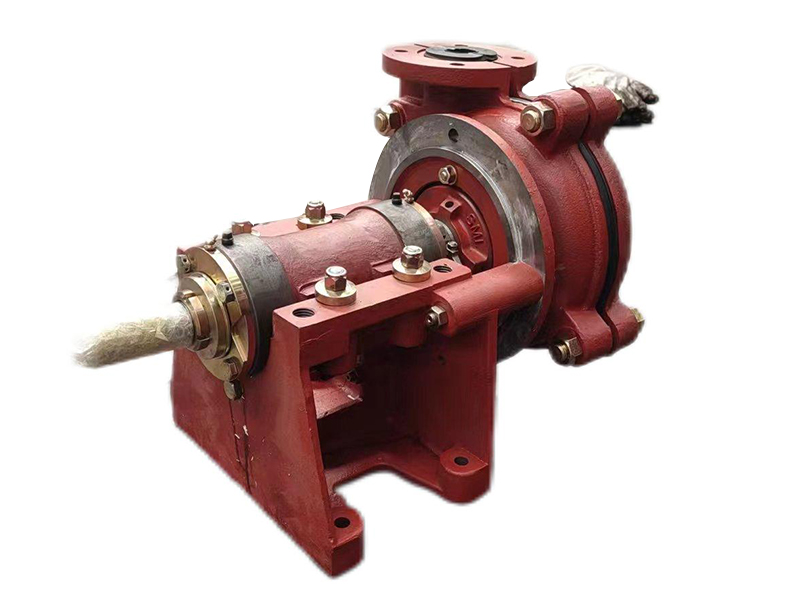

Heavy Duty Rubber Lined Slurry Pump
-
HCR Heavy duty rubber lined slurry pump features improved corrosion resistance, wear resistance, and a reasonable structure and possible operation, making it suitable for conveying highly abrasive and high-concentration slurry. It has a replaceable rubber liner, and the impeller is made of wear-resistant and corrosion-resistant natural rubber material. It is widely used in industries such as mining, coal washing, power plants, metallurgy, petrochemicals, and dredging.
In any industrial environment, efficiency is of utmost importance, and the lined slurry pump excels in this aspect. Its advanced hydraulic design optimizes flow patterns, reducing energy consumption while maintaining high pump efficiency. This not only lowers operating costs but also minimizes environmental impact, aligning with sustainable practices.
HCR horizontal heavy-duty rubber slurry pump is based on the HC slurry pump with added rubber lining, characterized by:
Hongchang is a professional enterprise specializing in the production of slurry pumps and slurry pump parts. We have the complete production capability from modeling to finished products.

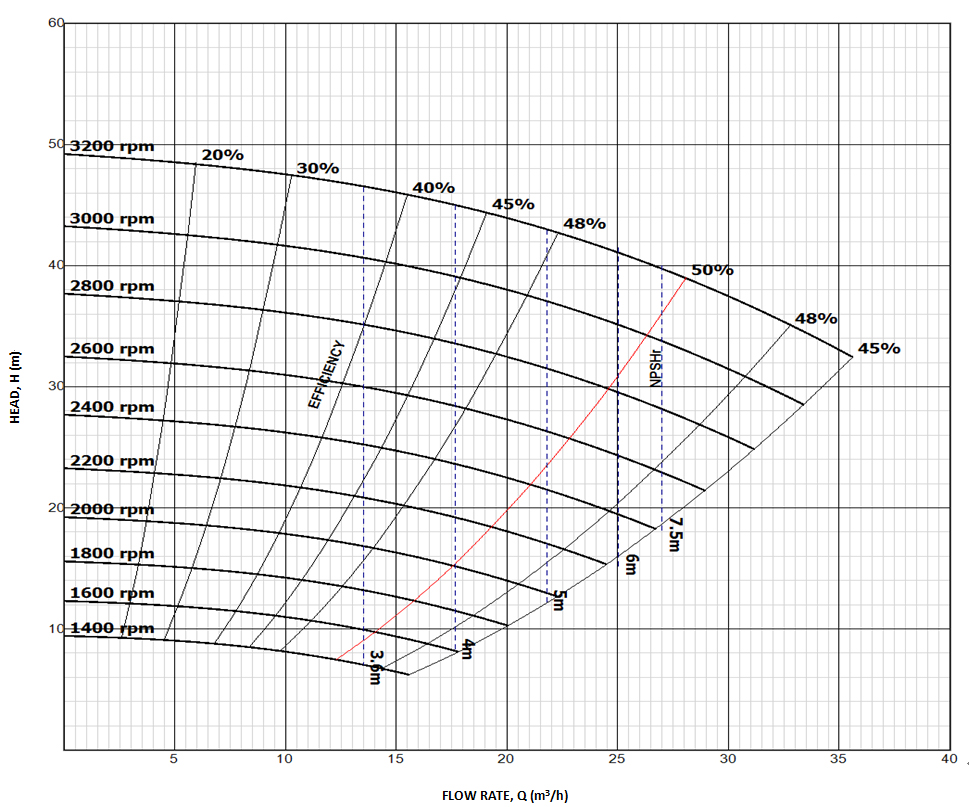

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 15 kW | 3.6-23.4 m³/h | 1-6.5m | 1400-3400 r/min | 35% | 2-4 m | 152 mm | 2.2-15 kW |

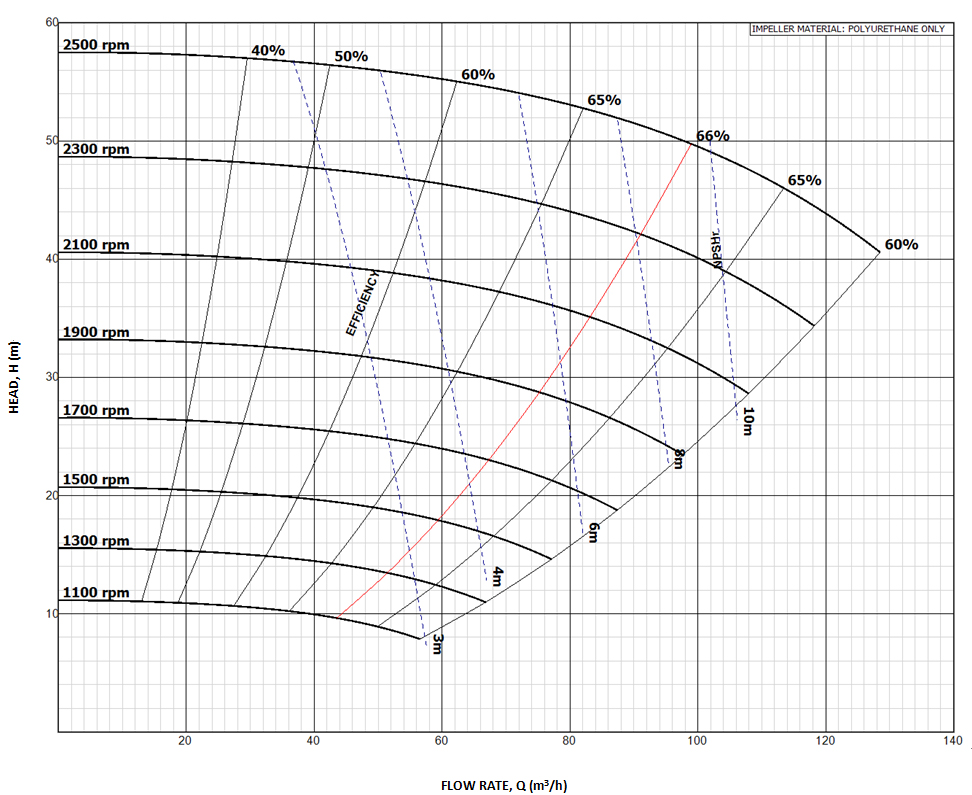

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |

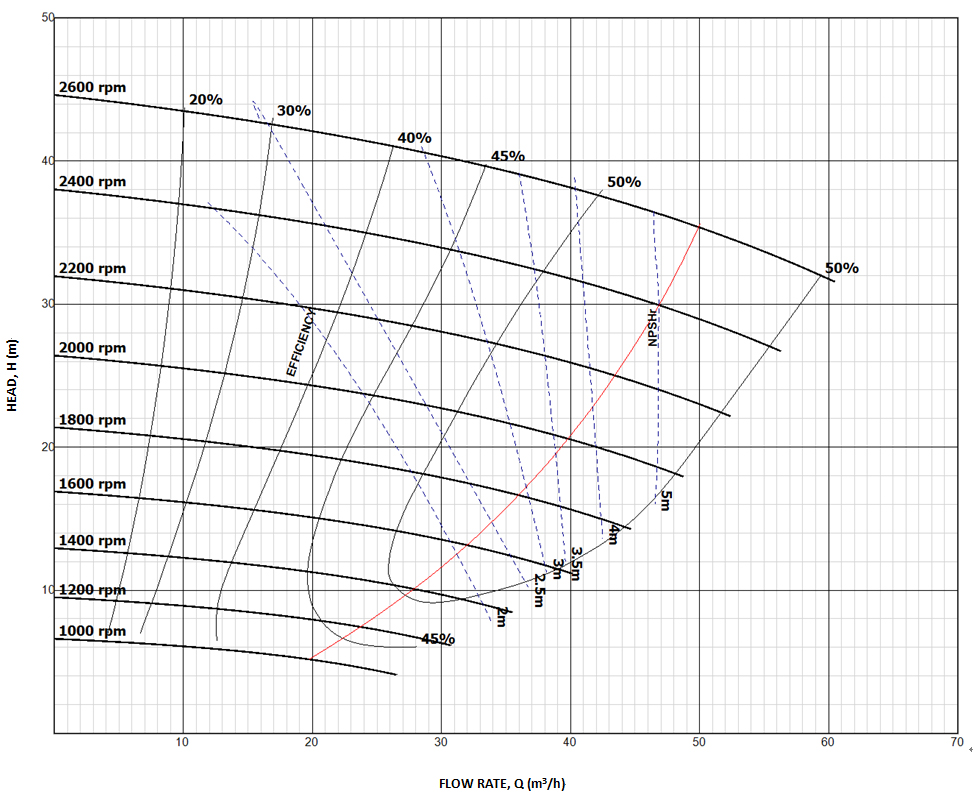

| 15 kW | 5.76-42.48 m³/h | 1.6-11.8 m | 1000-2600 r/min | 50% | 2.5-5 m | 178 mm | 1.5-15 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 30 kW | 18.7-63.3 m³/h | 5.2-17.6 m | 1300-2100 r/min | 60% | 2-4m | 213mm | 3-30 kW |

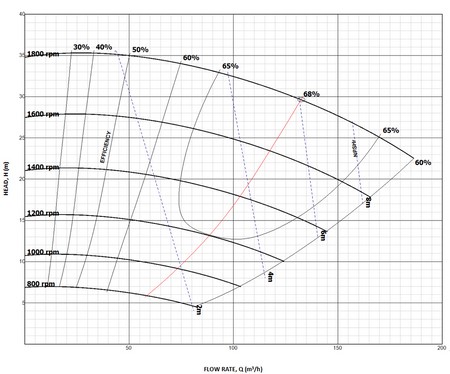

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |

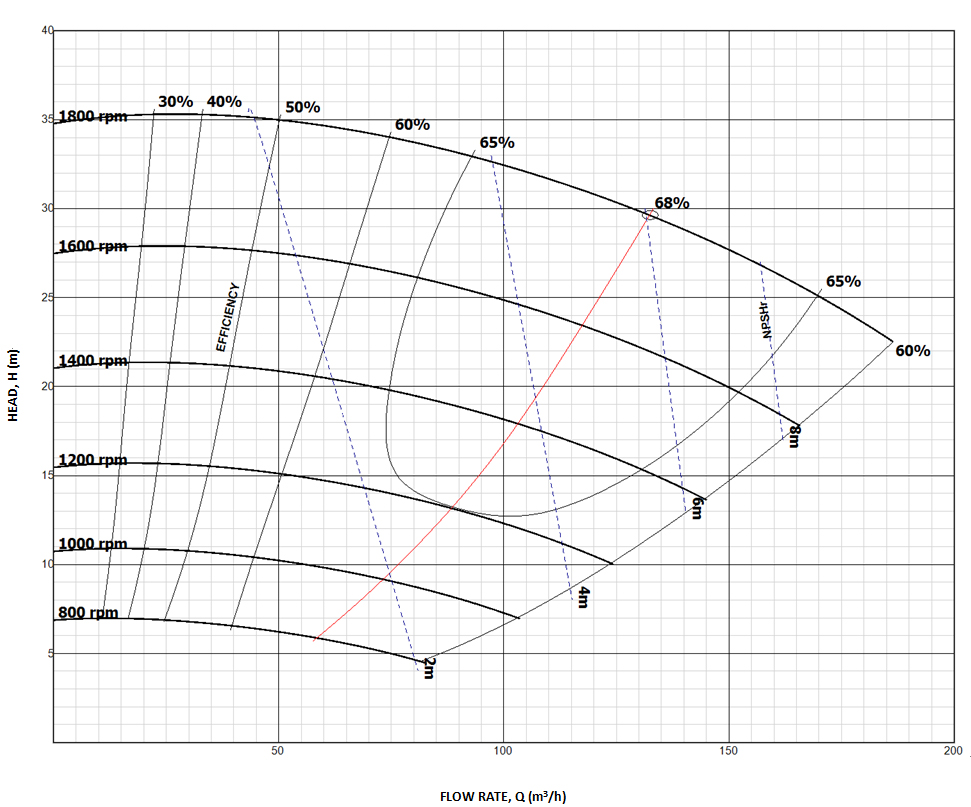

| 30 kW | 25.2-129.6 m³/h | 7-36 m | 800-1800 r/min | 59% | 3-5m | 245mm | 2.2-30 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 60 kW | 39.6-129.6 m³/h | 11-36 m | 1300-1800 r/min | 59% | 3-5m | 245mm | 7.5-37 kW |

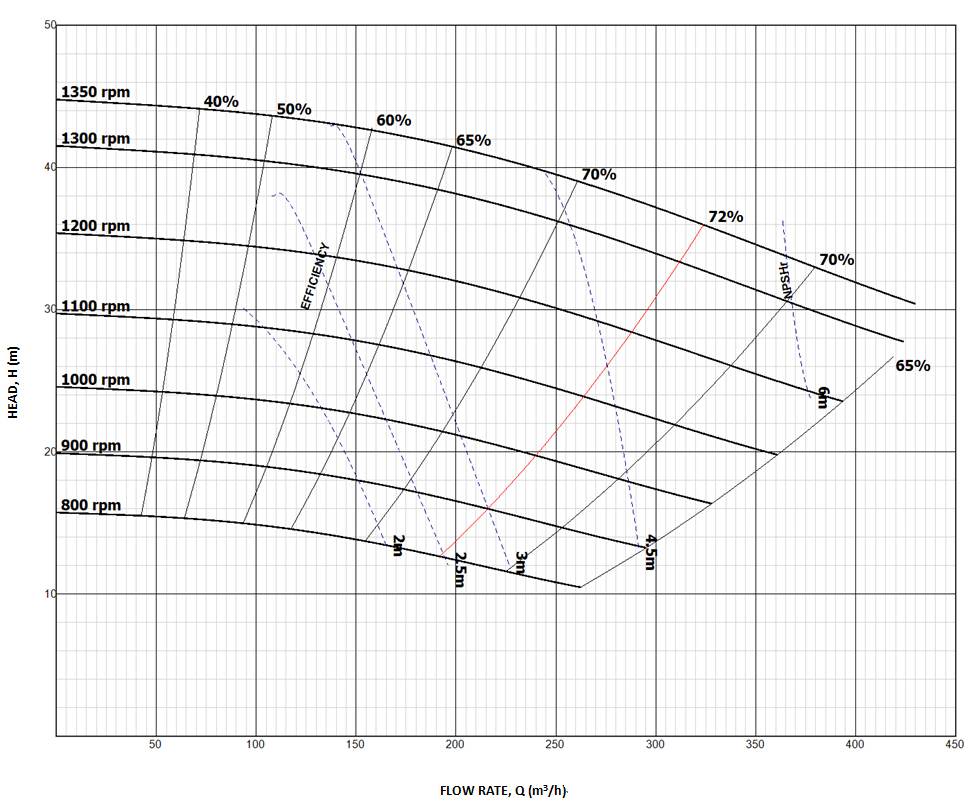

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 60 kW | 72-324 m³/h | 20-90 m | 800-1350 r/min | 65% | 3-5m | 365mm | 7.5-37 kW |

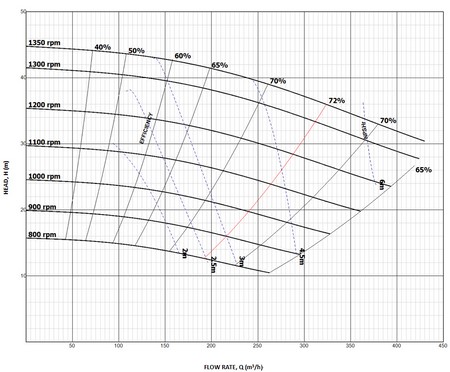

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 120 kW | 79.2-324 m³/h | 22-90 m | 1000-1350 r/min | 65% | 3-5m | 365mm | 18.5-75 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 120 kW | 97,2-68.4 m³/h | 27-19 m | 400-1000 r/min | 72% | 2-9m | 510mm | 18.5-75 kW |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |

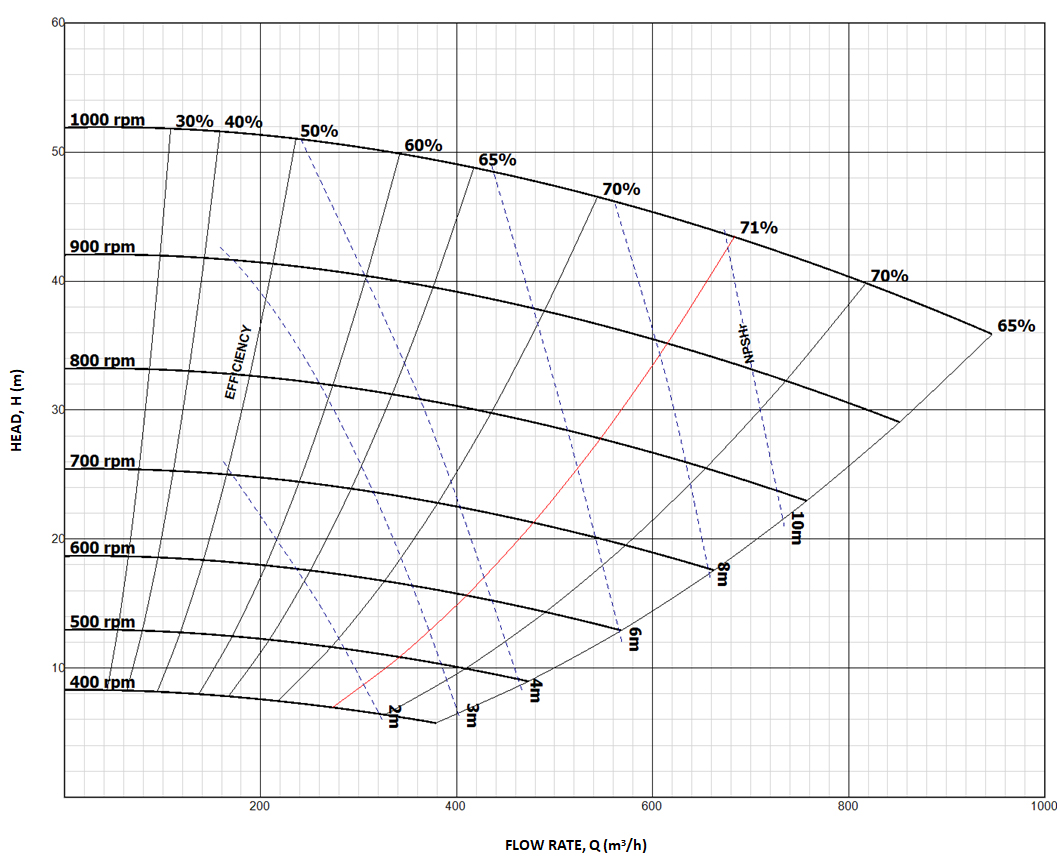

| 300 kW | 223-1267 m³/h | 41-57.9 m | 900-1050 r/min | 65% | 5-10 m | 510 mm | 75-280 kW |

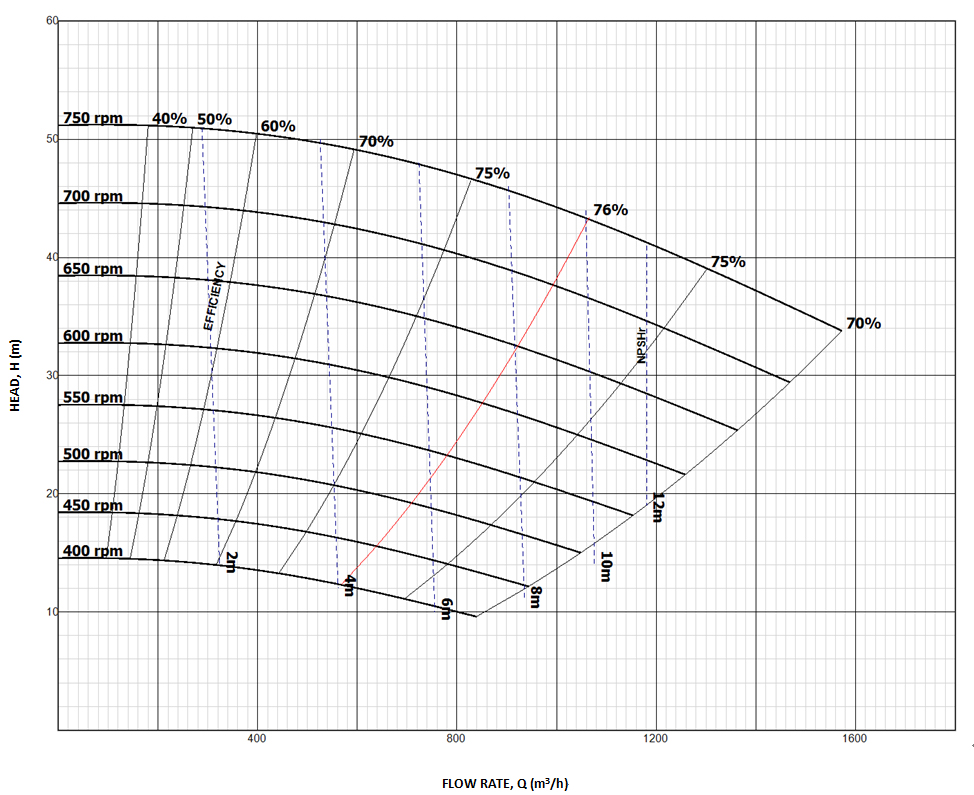

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 560 kW | 540-1188 m³/h | 12-50 m | 400-750 r/min | 75% | 4-12 m | 686 mm | - |

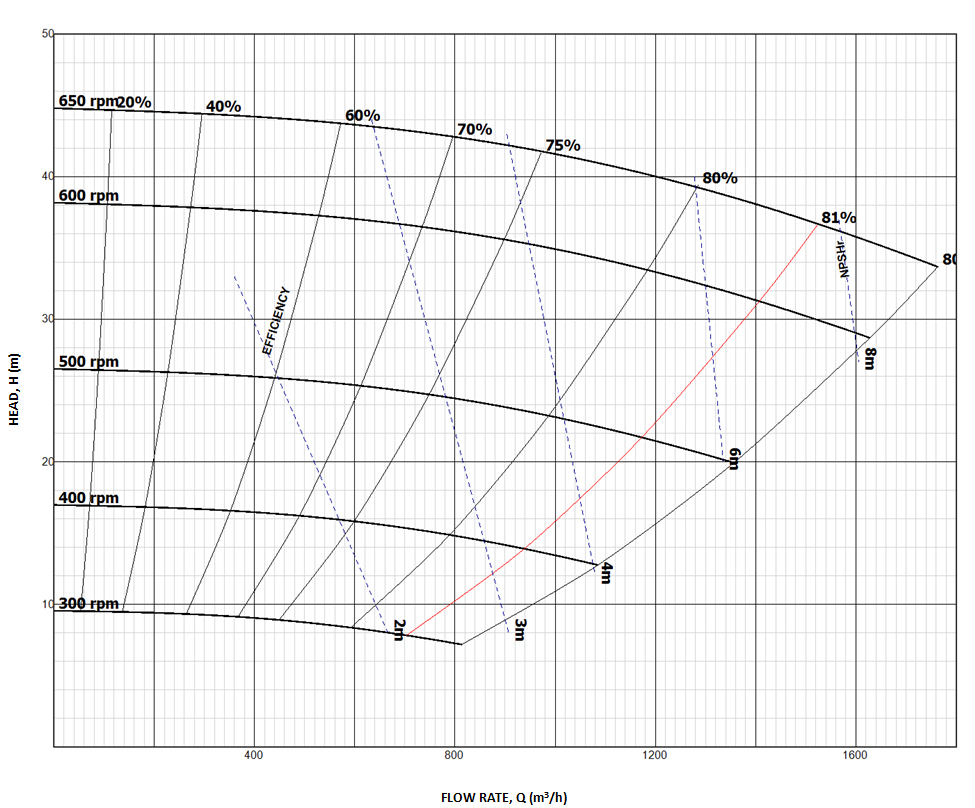

| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 560 kW | 720-1620 m³/h | 7-45 m | 300-650 r/min | 80% | 2.5-7. 5m | 762 mm | - |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |

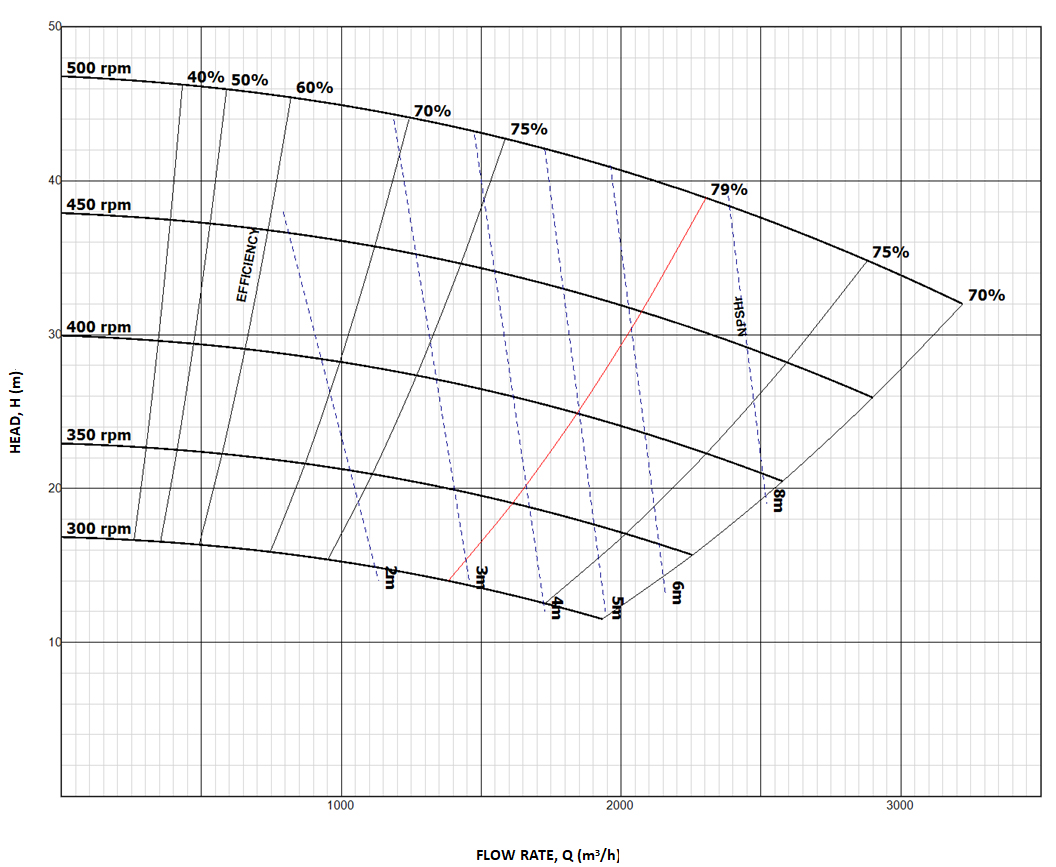

| 560 kW | 1152-2520 m³/h | 13-44 m | 300-500 r/min | 79% | 3-8 m | 965 mm | - |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |
| 1200 kW | 1368-3060 m³/h | 11-63 m | 250-550 r/min | 79% | 4-10 m | 1067 mm | - |
| Allowable Max. Power | Capacity | Head | Speed | Efficiency η | NPSH | Impeller Diameter | Motor Power Rang |

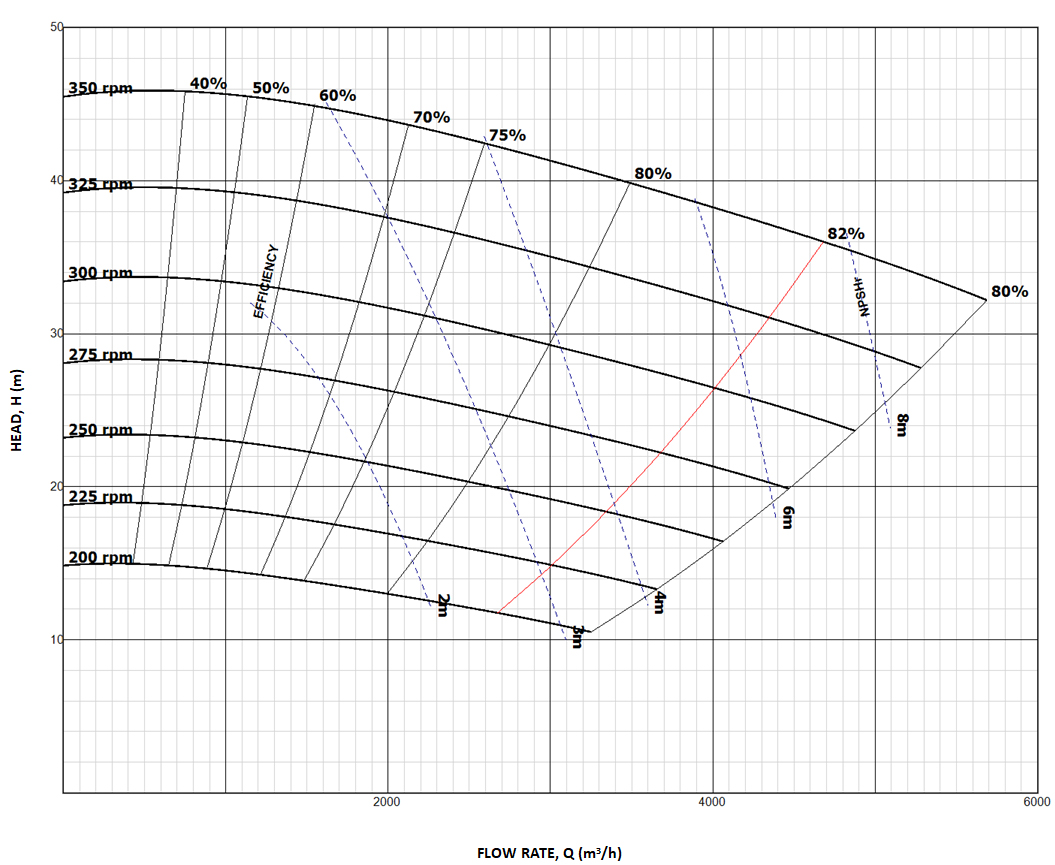

| 1200 kW | 2520-5400 m³/h | 13-57 m | 200-400 r/min | 85% | 5-10 m | 1370 mm | - |
HCR horizontal heavy-duty rubber slurry pump is the preferred choice for demanding applications due to its outstanding performance, durability, and ease of maintenance. It is also used for handling highly abrasive, high-density slurries. It is typically suitable for corrosive slurries. In some mining operations, larger HC series pumps will also be used to transport fine ore or tailings. Therefore, whether you are in mining, mineral processing, chemical processing, or any industry requiring reliable slurry pumping, the lined slurry pump is a trusted partner for you.
In highly-concentrated slurries, there may be a significant presence of solvents such as acids, petroleum, or sharp solid particles. Using a regular water pump in such conditions can easily lead to pump damage.
Slurry pumps are designed with wear-resistant materials and have easily replaceable components, making maintenance and repairs convenient. Therefore, slurry pumps are commonly used in these situations.
