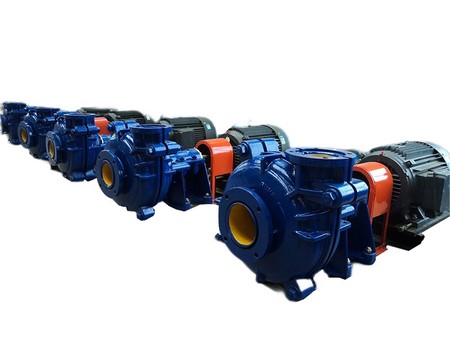

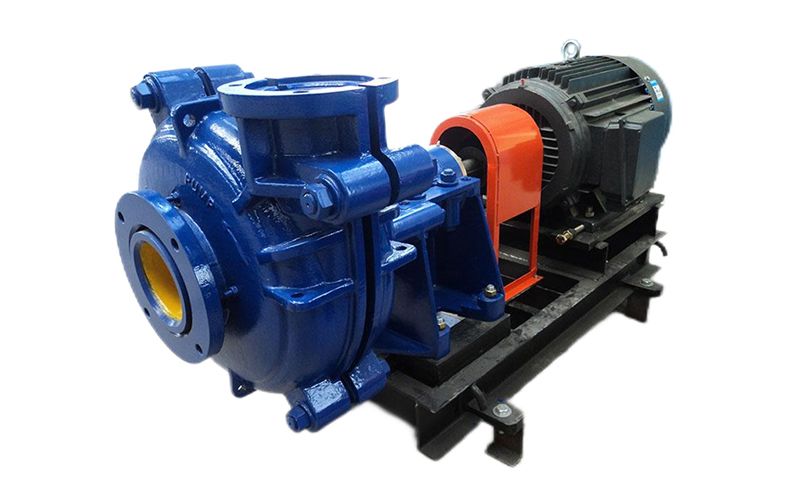

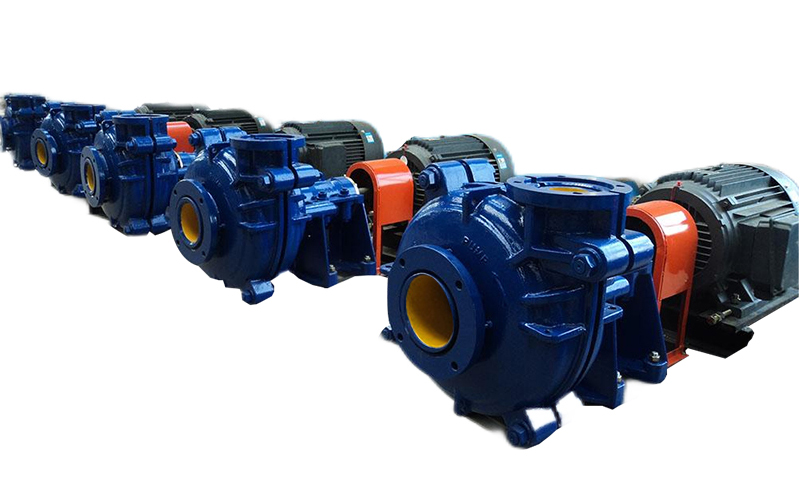

Heavy duty slurry pump is designed to transport slurry containing solid particles, thus having high requirements on wear resistance. It is ideal for conveying highly abrasive and high-concentration slurries in coal preparation plants, metal mines for fine ores, tailings treatment, combined bottom ash in thermal power plants, and fly ash handling, etc.
Capacity: 3.6-5400m³/h
Head: 5-57m
Speed: 200-3800r/min
Power: 2.2-1200kW
Features
Long bearing life, with large diameter shaft and short overhang for bearing components.
Wear-resistant wet parts, made of molded rubber. They are fully interchangeable with metal wet parts.
Easy adjustment of the impeller, with the impeller adjustment mechanism located below the bearing housing.
Available options for impeller sealing, including gland packing, stuffing box seal, and mechanical seal.
High wear resistance
High efficiency, low energy consumption
Easy and quick installation and maintenance

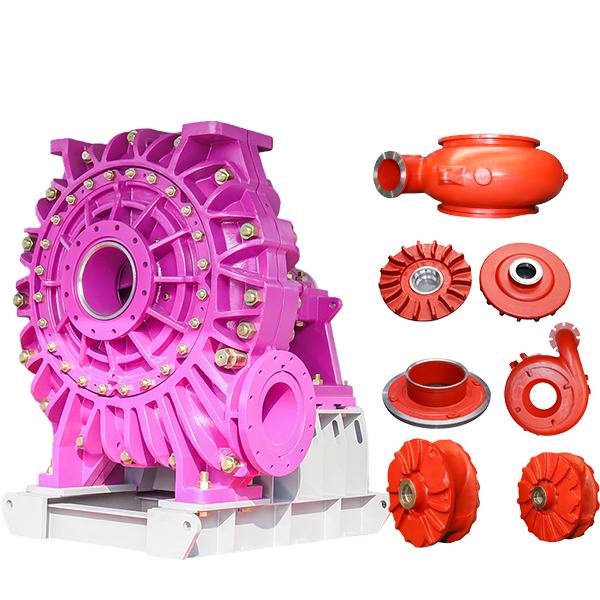

Pump Parts

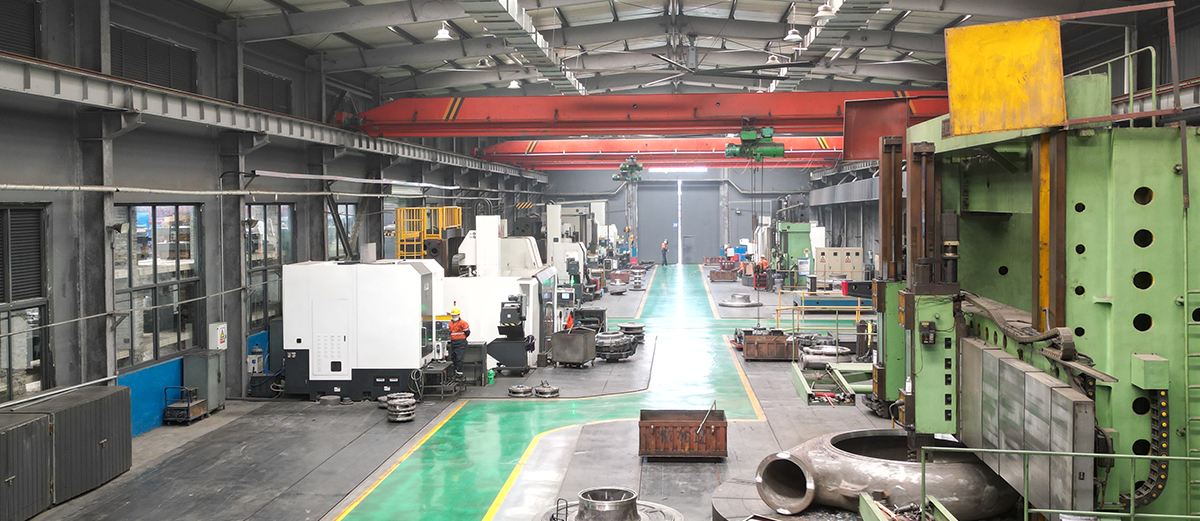

Hongchang is a professional enterprise specializing in the production of slurry pumps and slurry pump parts. We have the complete production capability from modeling to finished products.
Frame: Type C/D (Max. power 30/60 kW) Seal: gland seal
4x3D-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
60 kW
28.8-158.4 m³/h
7.6-44 m
1000-2200 r/min
71%
4-6 m
245 mm
5.5-55 kW
Inquiry
Pump
Suction: 102mm
Discharge: 76mm
Impeller
Type: closed
Vanes: 5
Diameter: 245mm
Material: metal
Frame: Type C/D (Max. power 30/60 kW) Seal: gland seal
6x4D-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
60 kW
72-331.2 m³/h
12.6-48 m
800-1480 r/min
65%
5-8 m
365 mm
15-55 kW
Inquiry
Pump
Suction: 152mm
Discharge: 102mm
Impeller
Type: closed
Vanes: 5
Diameter: 365mm
Material: metal
Frame: Type D/E (Max. power 60/120 kW) Seal: gland seal
6x4E-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
120 kW
93.6-385.2 m³/h
21.7-63 m
1050-1600 r/min
65%
5-8 m
365 mm
22-115 kW
Inquiry
Pump
Suction: 152mm
Discharge: 102mm
Impeller
Type: closed
Vanes: 5
Diameter: 365mm
Material: metal
Frame: Type D/E (Max. power 60/120 kW) Seal: gland seal
10x8E-HCM
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
120 kW
252-1087 m³/h
14.6-43 m
600-900 r/min
73%
4-10 m
549 mm
11-115 kW
Inquiry
Pump
Suction: 254mm
Discharge: 203mm
Impeller
Type: closed
Vanes: 5
Diameter: 686mm
Material: metal
Frame: Type F (Max. power 260 kW) Seal: gland seal
8x6E-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
120 kW
126-720 m³/h
10-58 m
500-1100 r/min
72%
2-9 m
510 mm
11-115 kW
Inquiry
Pump
Suction: 203mm
Discharge: 152mm
Impeller
Type: closed
Vanes: 5
Diameter: 510mm
Material: metal
Frame: Type E (Max. power 120 kW) Seal: gland seal
8x6R-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
300 kW
208.8-594 m³/h
32.8-62 m
900-1140 r/min
72%
2-9 m
510 mm
110-185 kW
Inquiry
Pump
Suction: 203mm
Discharge: 152mm
Impeller
Type: closed
Vanes: 5
Diameter: 510mm
Material: metal
Frame: Type E (Max. power 120 kW) Seal: gland seal
10x8R-HCM
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
300 kW
295-1267 m³/h
21.4-57.9 m
730-1050 r/min
70%
4.5-8 m
549 mm
75-280 kW
Inquiry
Pump
Suction: 254mm
Discharge: 203mm
Impeller
Type: closed
Vanes: 5
Diameter: 686mm
Material: metal
Frame: Type F (Max. power 260 kW) Seal: gland seal
10x8ST-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
560 kW
206-1051 m³/h
11.5-46 m
400-730 r/min
71%
4-10 m
686 mm
45-320 kW
Inquiry
Pump
Suction: 254mm
Discharge: 203mm
Impeller
Type: closed
Vanes: 5
Diameter: 686mm
Material: metal
Frame: Type F (Max. power 260 kW) Seal: gland seal
12x10ST-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
560 kW
316-730 m³/h
10.2-54 m
350-730 r/min
82%
6 m
762 mm
45-380 kW
Inquiry
Pump
Suction: 305mm
Discharge: 254mm
Impeller
Type: closed
Vanes: 5
Diameter: 762mm
Material: metal
Frame: Type F (Max. power 260 kW) Seal: gland seal

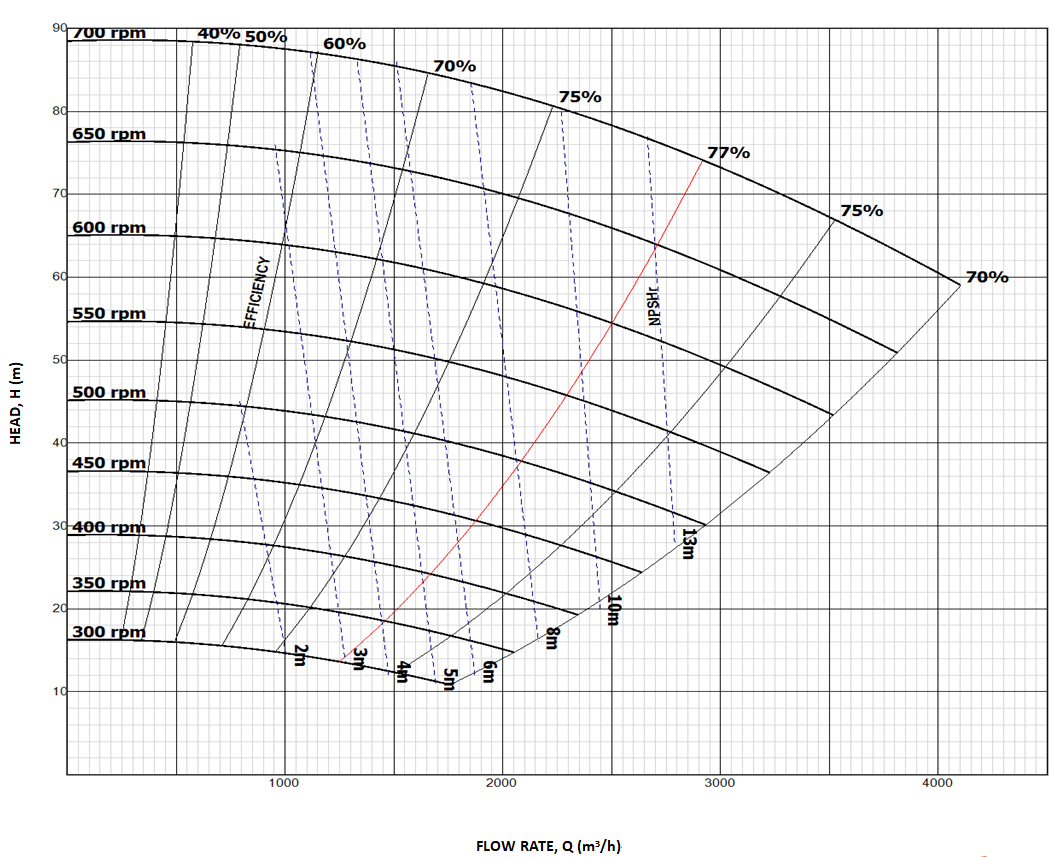

14x12ST-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
560 kW
504-2455 m³/h
13.5-60 m
300-585 r/min
77%
3-10 m
965 mm
55-480 kW
Inquiry
Pump
Suction: 356mm
Discharge: 305mm
Impeller
Type: closed
Vanes: 5
Diameter: 965mm
Material: metal
Frame: Type F/ST (Max. power 260/560 kW) Seal: gland seal
16x14TU-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
1200 kW
1368-3060 m³/h
11-63 m
250-550 r/min
79%
4-10 m
1067 mm
-
Inquiry
Pump
Suction: 406mm
Discharge: 356mm
Impeller
Type: closed
Vanes: 5
Diameter: 1067mm
Material: metal
Frame: Type G/TU (Max. power 600/1200 kW) Seal: gland seal

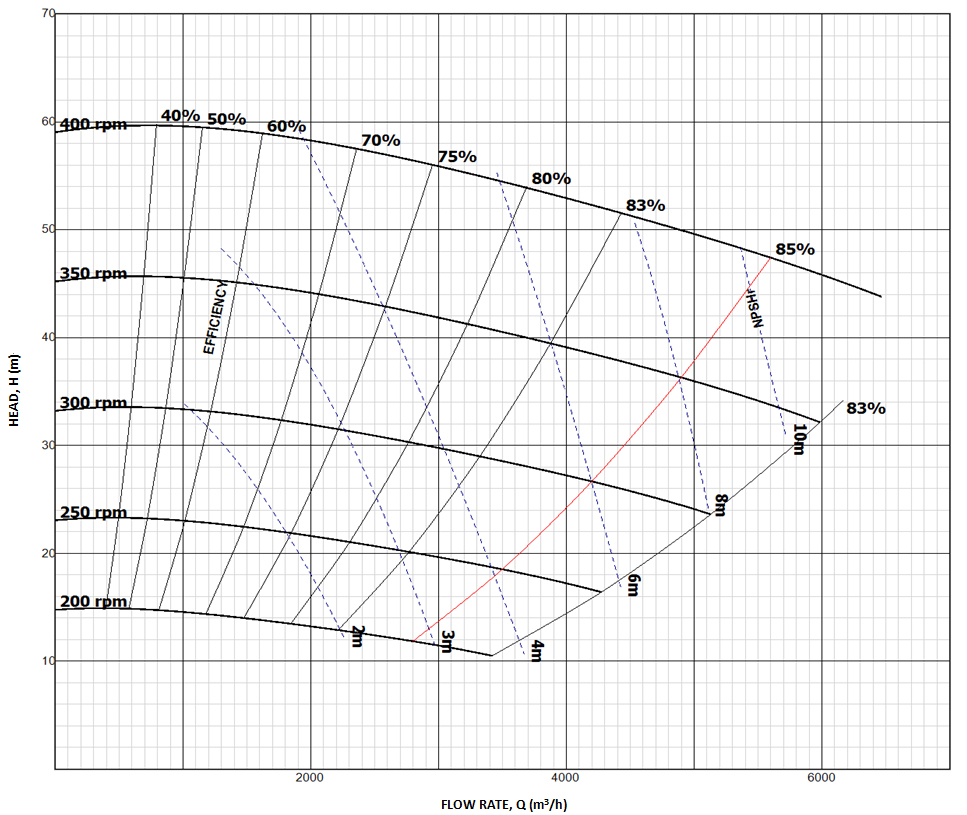

20x18TU-HC
Allowable Max. Power
Capacity
Head
Speed
Efficiency η
NPSH
Impeller Diameter
Motor Power Rang
1200 kW
2520-5400 m³/h
13-57 m
200-400 r/min
85%
5-10 m
1370 mm
-
Inquiry
Pump
Suction: 508mm
Discharge: 457mm
Impeller
Type: closed
Vanes: 5
Diameter: 1370mm
Material: metal
Frame: Type G/TU (Max. power 1200 kW) Seal: gland seal
Applications
Continuous pumping of highly abrasive and dense slurries, such as hydraulic cyclone feed regrinding, flotation, and tailings.
Mineral processing in mines (gold, copper, iron, molybdenum, etc.)
Tailings transport
Ash removal in power plants
Flue gas desulfurization in power plants
Coal washing in coal plants
Looking for a heavy duty sludge pump that won't clog or fail?
Hongchang heavy-duty slurry pump is designed with efficiency in mind, maximizing production while optimizing energy consumption. By minimizing operational costs, it not only helps improve you profit but also contributes to a more environmentally friendly and sustainable industrial operation. Its efficient design allows for continuous operation, reducing maintenance and providing consistent products.
We understand the importance of easy maintenance and operation, which is why our heavy-duty slurry pump features a user-friendly design. With accessible components and an intuitive interface, daily maintenance tasks become simple and understandable.
The pump excels in its ability to transport materials seamlessly, even under the most challenging conditions. Whether you're handling gravel, coal, ore, or other abrasive substances, this pump ensures excellent performance, maximizing productivity and minimizing downtime.
Safety is of utmost importance in any industrial environment, and our heavy-duty slurry pump design incorporates comprehensive safety features. It complies with industry standards, providing peace of mind and safeguarding personnel and equipment. With its robust structure and advanced safety measures, you can rely on this pump's outstanding performance without compromising safety.
FAQs
+
—
What is the best pump for thick slurry?
Hongchang slurry pump is designed with a spacious flow path, allowing for the passage of high-density slurries without clogging, ensuring an extended lifespan and lower maintenance costs.
+
—
What are the different types of slurry pumps?
When selecting a slurry pump for specific applications, they can be categorized into two types based on their product positioning: vertical pumps and horizontal pumps.
+
—
Where are slurry pumps used? What are some applications of slurry pumps?
Slurry pumps are used in various applications such as handling highly abrasive slurries, iron ore and tailings, mineral processing, coal handling, granite and marble slurries, desilting, and they find application in dam and pressure pipeline tunnels.
